How Construction Estimators Use Plans, Specifications, and Drawings

A set of construction documents is a coordinated package of information, but it is not arranged for estimators. What you need to price a single item may be spread across a floor plan, a section, a detail, a schedule and a paragraph in the specifications. Knowing where to look is a core estimating skill.

Related service: estimates prepared from full construction documents.

Get a Free Sample Estimate Read the article ↓
Remarkable Estimating ServicesAuthor
Published
6 minRead time
Estimating ProcessCategory

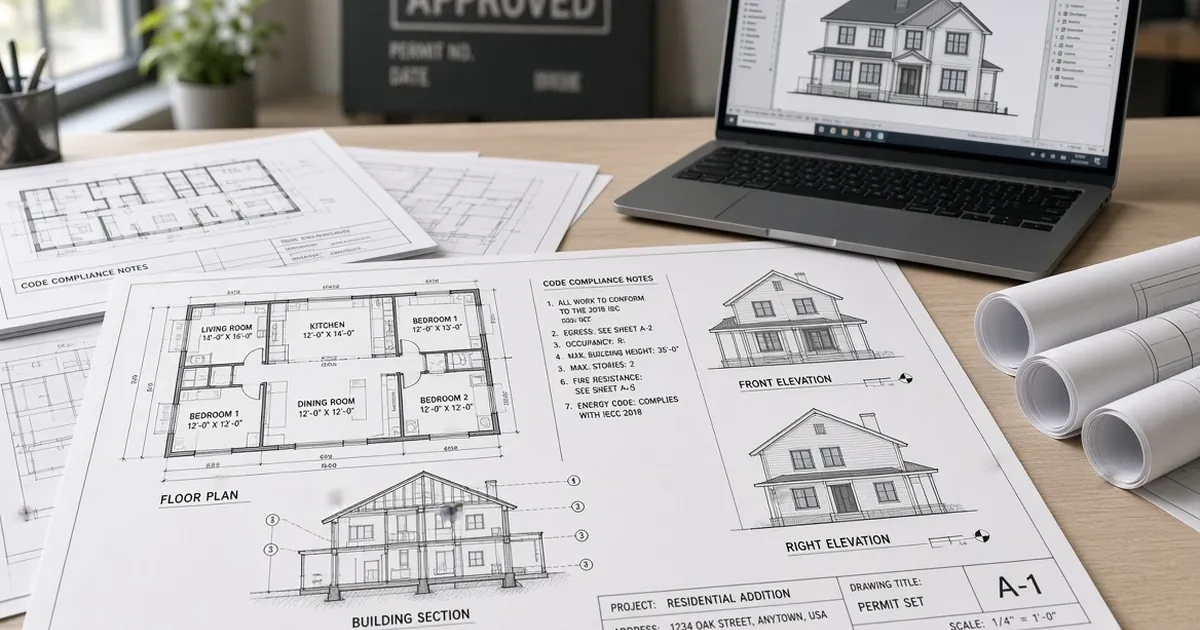

Residential floor plan, elevations and building sections spread on a desk beside a laptop showing a house model

This article explains how estimators read construction documents: what each type of drawing is for, where hidden quantities live, how specifications change the price, and what to do when the documents disagree.

The Parts of a Construction Document Set

Most commercial and many residential projects include:

  • Drawings, organized by discipline, which show what is built and where.
  • Specifications (the project manual), which define materials, quality, execution and administrative requirements.
  • Addenda, issued during bidding, which modify drawings or specifications.
  • Bid documents: the invitation, instructions to bidders, bid form and contract conditions.

An estimate built from only one of these parts is incomplete.

Reading the Drawings by Discipline

Drawing sheets are usually prefixed by discipline. Common prefixes include:

  • G for general sheets: index, code analysis, abbreviations and symbols.
  • C for civil: grading, utilities, paving and erosion control.
  • L for landscape.
  • S for structural: foundations, framing, schedules and connection details.
  • A for architectural: plans, elevations, sections, details and schedules.
  • M, P, E and FP for mechanical, plumbing, electrical and fire protection.

Exact conventions vary by firm, so confirm them from the sheet index and legend.

Start with the general sheets

General sheets define abbreviations, symbols and the code basis of the design. Code analysis sheets can tell you about fire ratings, occupancy and construction type, all of which affect materials and assemblies.

Plans show where; sections and details show how

Floor plans show layout and quantities of many items, but they rarely show everything. Building sections show heights and vertical relationships. Wall sections and details show the actual layers of an assembly and the small components that add up: blocking, flashing, sealants, trim and fasteners.

Schedules are quantity checklists

Door, window, hardware, finish, fixture, equipment and panel schedules consolidate information that would otherwise be scattered. Reconciling your counts with each schedule is one of the fastest quality checks available.

Notes carry requirements

General notes and keynotes often contain requirements that apply across many sheets, such as "provide fire-rated sealant at all rated penetrations." A single note like that can apply to hundreds of locations.

What the Specifications Add

Specifications turn "a wall" into a specific, priceable product. In most commercial projects they follow CSI MasterFormat, with each section typically divided into three parts:

  • Part 1 (General): submittals, quality assurance, warranties and coordination requirements.
  • Part 2 (Products): acceptable manufacturers, materials, grades and performance requirements.
  • Part 3 (Execution): installation methods, tolerances, testing and cleaning.

Division 01: easy to skip, expensive to miss

Division 01 (General Requirements) covers project-wide obligations such as temporary facilities, field offices, testing and inspection, mock-ups, cleaning and closeout documents. Several of these land in general conditions; others belong to specific trades.

Specifications can change quantities, not just prices

A specification requiring two coats instead of one, a specific board type in wet areas, or a thicker slab under equipment changes the takeoff itself, not just the unit price.

Addenda and Bid Documents

Addenda can change anything: replace sheets, add scope, answer RFIs, move the bid date or clarify the bid form. Log each addendum, record what changed, and make sure it is acknowledged on the bid form.

The instructions to bidders and bid form tell you what must be priced separately (alternates, unit prices, allowances), what must be submitted with the bid, and the format required. They are as important to the estimate as any drawing.

When the Documents Conflict

Conflicts are common. A dimension on a plan disagrees with a detail, a schedule lists a different finish from the specification, or two disciplines show the same item differently.

  1. Check the contract's order of precedence. Many contracts state whether specifications govern over drawings, or large-scale details over small-scale ones.
  2. Submit an RFI when time allows, and incorporate the answer.
  3. When time does not allow, price the more stringent or more complete requirement, or price one interpretation and state the assumption clearly in your qualifications.
  4. Never resolve a conflict silently. An undocumented choice becomes a dispute later.

Example: Tracing One Item Through the Documents

Consider exterior wall framing on a hypothetical small commercial building. The floor plan shows wall locations and lengths. The building sections show the wall height from slab to roof deck. The wall sections show stud size, spacing, sheathing, insulation and air barrier. A structural detail shows additional studs and hardware at openings. The specifications define stud gauge, sheathing type and the air barrier product, and require a mock-up panel for inspection.

A takeoff based only on the floor plan would capture wall length and little else. Tracing the item through every document produces a complete, priceable scope, including the mock-up that appears only in the specifications.

Working With Digital Documents

Digital takeoff tools make it easier to move between sheets, overlay revisions and keep measurements linked to the drawings. A few habits help:

  • Bookmark and hyperlink the drawing set by discipline.
  • Use overlay or compare features to find changes between drawing revisions.
  • Keep the specifications searchable, and search for your trade's materials and requirements across all sections, not just your own division.

Symbols, Scales and Abbreviations

Small reading errors cause big estimating errors. Common ones include:

  • Scale confusion: enlarged plans and details are drawn at different scales from the main floor plan, and a sheet may carry several scales. Confirm the scale for each view, not just the sheet.
  • Printed or exported PDFs that no longer match their stated scale. Always verify against a dimensioned element.
  • Symbol legends that differ between disciplines or between design firms on the same project.
  • Abbreviations that mean different things in different contexts. Check the abbreviation list rather than assuming.
  • "Typical" notes that apply a detail to every similar condition, multiplying its cost across the project.
  • "Similar" and "opposite hand" notes that indicate repeated work not drawn in full.

Drawings Issued for Different Purposes

Check the issue status on the title block. Drawings issued "for bid," "for permit" or "for construction" can differ, and schematic or design development sets may be missing significant detail. An estimate prepared from a less complete set should carry more contingency and clearly state which issue it is based on.

Conclusion

Reading construction documents for estimating means treating the set as a whole: start with the index and general sheets, use plans for layout, sections and details for assemblies, schedules for counts, and specifications for products and requirements. Track addenda carefully and resolve conflicts in writing. For the full estimating sequence that follows, see our guide to preparing a construction estimate from plans. Remarkable Estimating Services reviews complete document sets before measuring and flags conflicts and gaps as part of every estimate.
